ATP Acoustic Treatment Packs


ATP 01   9 - 13 sq. m.
ATP 02 13 - 17 sq. m.
ATP 03 17 - 24 sq. m.
ATP 04 24 - 30 sq. m.
ATP 05 30 - 40 sq. m.





ATP 03 Excellence   -   Jocaci ATP Acoustic Treatment Packs


ATP®03 is a set of acoustic panels prepared for medium-sized rooms, which are maybe the most usual ones.



You can choose from the two ATP®03 available solutions: Standard or Excellence, depending on your needs and aesthetic taste.

Besides using absorption and diffusion panels, ATP®03 also uses low-frequency tuned modules, BKA120 and BKW120, as the pictures show. It is imperative to use these modules in such type of rooms in order to hold the energy at low frequencies.

The presence of acoustic panels in a room helps to enhance, in the most real way, the sound produced by its system, thus improving the sound stage and the channel separation. The next step is to optimise the acoustic coupling between the listener and the speakers, while minimizing the SBIR and the modal emphasis to produce a frequency response as flat as possible in the room.

ATP®03 is a very practical assembly kit and is provided with assembly instructions, as well as the glues and tools which are necessary to apply the acoustic modules.

Where to apply:
  • Rooms with an area between: 17 and 24 square meters
  • Rooms with volumes between: 45 and 58 cubic meters
  • For use in medium-sized home-theatre rooms, home-studios, Hi-fi rooms or instrument rooms.
ATP®03 Acoustic features:
These values were obtained by simulation in specific JAS® software and later confirmed through acoustic analyses in the rooms. The simulated and tested rooms are totally empty, and only the referred ATP®03 PACK acoustic panels are applied.

Traditional construction room with the following features:
  • Dimensions: (L, W, H): 5.82m / 4.00m / 2.5m.
  • Walls: masonry with painted fine stuff and a wooden door
  • Ceiling: 12 mm - thick plaster.
  • Floor: natural floating parquet.

125 Hz 250 Hz 500 Hz 1 K 2 K 4 K
0.52 0.49 0.49 0.48 0.44 0.42
Sabine 0.47 sec

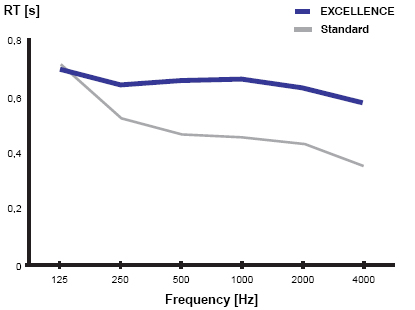

Reverberation time for ATP 01 Excellence


  Reference Panels Units Diffusor Absorbent Tuned
  WAV060 Wavyfuser 9 + - -
  WAI060 Wavyfuser INV 9 + - -
  FSO060 Foamsorb 9 - + -
  FSI060 Foamsorb INV 9 - + -
  BKA120 Basskeeper Angle 8 - - +
  BKW120 Basskeeper Wall 4 - - +



ATP 03 Standard   -   Jocaci ATP Acoustic Treatment Packs


ATP®03 is a set of acoustic panels prepared for medium-sized rooms, which are maybe the most usual ones.



You can choose from the two ATP®03 available solutions: Standard or Excellence, depending on your needs and aesthetic taste.

Besides using absorption and diffusion panels, ATP®03 also uses low-frequency tuned modules, BKA120 and BKW120, as the pictures show. It is imperative to use these modules in such type of rooms in order to hold the energy at low frequencies.

The presence of acoustic panels in a room helps to enhance, in the most real way, the sound produced by its system, thus improving the sound stage and the channel separation. The next step is to optimise the acoustic coupling between the listener and the speakers, while minimizing the SBIR and the modal emphasis to produce a frequency response as flat as possible in the room.

ATP®03 is a very practical assembly kit and is provided with assembly instructions, as well as the glues and tools which are necessary to apply the acoustic modules.

Where to apply:
  • Rooms with an area between: 17 and 24 square meters
  • Rooms with volumes between: 45 and 58 cubic meters
  • For use in medium-sized home-theatre rooms, home-studios, Hi-fi rooms or instrument rooms.
ATP®03 Acoustic features:
These values were obtained by simulation in specific JAS® software and later confirmed through acoustic analyses in the rooms. The simulated and tested rooms are totally empty, and only the referred ATP®03 PACK acoustic panels are applied.

Traditional construction room with the following features:
  • Dimensions: (L, W, H): 5.82m / 4.00m / 2.5m.
  • Walls: masonry with painted fine stuff and a wooden door
  • Ceiling: 12 mm - thick plaster.
  • Floor: natural floating parquet.

125 Hz 250 Hz 500 Hz 1 K 2 K 4 K
0.71 0.55 0.52 0.50 0.47 0.42
Sabine 0.53 sec

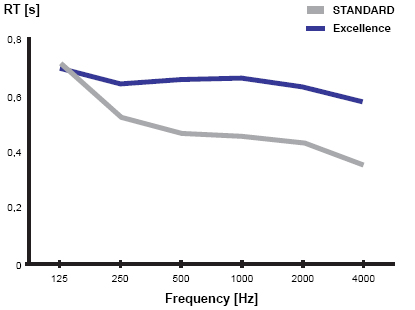

The way the reverberation time develops for ATP 01 Standard


  Reference Panels Units Diffusor Absorbent Tuned
  STS120 Stripesorb 18 - + -
  T3S120 Trap 30S 8 - + -


Excellent solution in order to create optimal acoustic performance

Jocavi ATP 03 Excellence panels for acoustic solutions and complete sound



Acoustic panels for smaller rooms

The panels fit well into the interior



The panels improve your sound system

Jocavi panels for rooms from 17 - 24 m2



The units of the acoustic traetment pack of ATP 03 excellence

The number of units in this pack







Standard solution creating better acoustic sound

Jocavi ATP 03 Standard panels for acoustic treatment



Acoustic panels for small rooms and complete sound

Good panels for better sound



Improving your sound system with panels from Jocavi

Acoustic panels for rooms from 17 - 24 m2



The units of the acoustic traetment pack of ATP 03 standard

The number of units in this pack
