Cosmos   -   Jocavi ATP, Absorbent panels


COSMOS® is an acoustic panel that presents a set of four different aesthetics that meet all kinds of requirements.



It is an acoustic solution for commercial areas, offices, public spaces as well as audio and video studios.

Acoustic designers usually favour this type of covering because it is efficient and has a refined finishing as well. These are inexpensive and very attractive proposals.

The 8 cm thickness and the inside labyrinth provide COSMOS® with a high absorption coefficient. This absorbent panel comprises the full spectrum of the human voice and is used to absorb slap and flutter echoes in the room, thus allowing a more pleasant and accurate listening environment.

It can be glued directly on walls and ceilings. Mounting stripes are available for removable mounting. All mounting accessories sold separate. This model proposes four different perforations and five synthetic-wood finishes, as well as a flexible design with coupling options for the several pieces, therefore enabling different and varied aesthetic combinations.

Features:
  • Average NRC: 0.79 / m2.
  • Self-extinguishable M1 re retardant fabric-coated acoustic foam on a rigid framework.
  • 4 diferent types of perforations and 5 diferent types of wooden nishes.
  • Package: 4 units or 6 units.
  • Structural back box for improved mechanical resistance.
  • Enhanced acoustic performance.
  • Environmentally friendly.
  • Optional stripe removable fixation system.

Foam Colours



Finishings

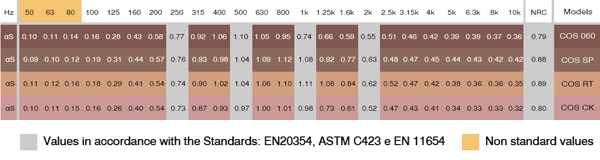

Value: Absorption Coefficient

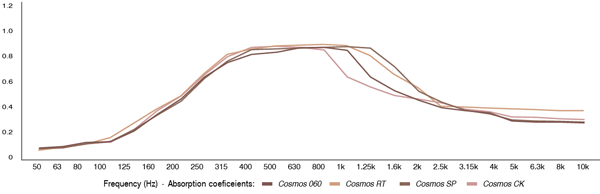

Graphic:



Package Data - COSMOS120:
    A L P Kg
  4 units/box 64 cm 123 cm 35 cm 11.2
  6 units/box 64 cm 123 cm 51 cm 18.8

Package Data - COSMOS060:
    A L P Kg
  4 units/box 64 cm 64 cm 35 cm 5.6
  12 units/box 64 cm 104 cm 64 cm 8.4
