Stripecombi   -   Jocavi ATP, Combined absorption / Diffusion panels


This design was based on a striped shape and is made of two different raw materials for absorption and diffusion surfaces.



It is made of acoustic foam and EPS which give it aural and visual characteristics of superior balance.

This model combines hemispherical acoustic diffusion and absorption features and can be applied as a single element in the acoustic treatment of a music room.

STRIPECOMBI ® is one of the most balanced panels of our catalogue. This panel can be set by gluing it on walls and ceilings.

It was specifically designed to be applied on continuous areas.

Features:
  • Diffusion average: 0.45 / m2 [> 100 Hz; < 5 KHz].
  • NRC average: 0.54 / m2 [> 100 Hz; < 5 KHz].
  • EPS Euroclass fire-retardant (NP EN 13501-1).
  • Self-extinguishable M1 fire-retardant acoustic foam.
  • Package: 4 units or 12 units.
  • Very easy to install.
  • T-ceilings ready applications.

Standard Colours



Value: Diffusion Coefficient



Value: Absorption Coefficient

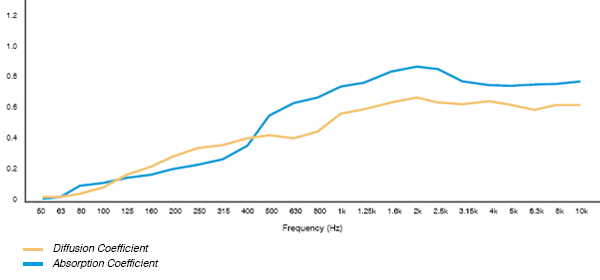

Graphic:

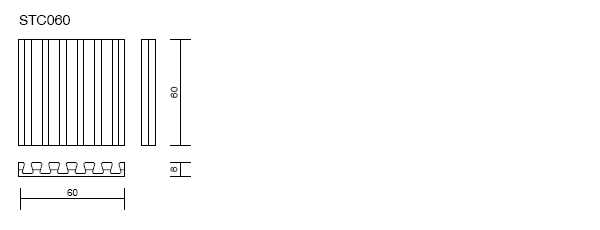

Technical drawing:


Model sizes:
    H W D Kg
  STC060 60 cm 60 cm 8 cm 0.5


Package Data - STC060:
    H W D Kg
  4 units/box 35 cm 64 cm 64 cm 4.0
  12 units/box 104 cm 64 cm 64 cm 10.2


Jocavi ATP Stripecombi





Jocavi ATP Stripecombi





Jocavi ATP Stripecombi
