Wavyfuser   -   Jocavi ATP, Combined absorption / Diffusion panels


The WAVYFUSER® Sound Diffuser is made of high quality 100% recyclable ecologic EPS raw material.



This design results from combining a sequence of concave and convex shapes with numerical techniques which creates a profile surface that optimises the scattering of diffusion. (The same shape can be found in the FOAMSORB® absorbent panel for perfect mounting combinations).

This model has two different varieties, male and female, which, when combined in the assembly, make the diffusion of medium/low frequencies more efficient.

Acoustically, this translates into a more real control of sound reflections in your room, by providing uniform omnidirectional broad bandwidth diffusion without any other unwanted sound effect in the room.

The WAVYFUSER® is the top model of ATP® diffusers set.

Its price is highly reasonable and provides a combination of hemispherical acoustic diffusion with a top-quality EPS finishing painting.

Features:
  • Diffusion average: 0.57 / m2 [> 100 Hz; < 5 KHz].
  • NRC average: 0.21 / m2 [> 100 Hz; < 5 KHz].
  • Great decorative alternatives.
  • EPS Euroclass fire-retardant (NP EN 13501-1).
  • Package: 6 units or 12 units.
  • In stock for immediate delivery.
  • Very easy to install.

Standard RAL Colours



Value: Diffusion Coefficient



Value: Absorption Coefficient

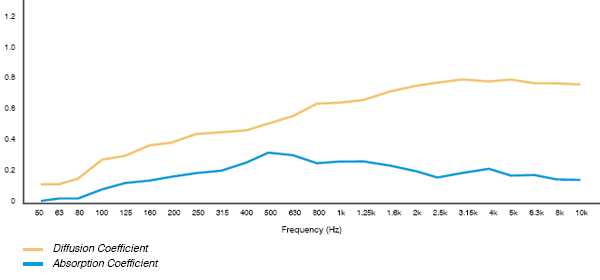

Graphic:

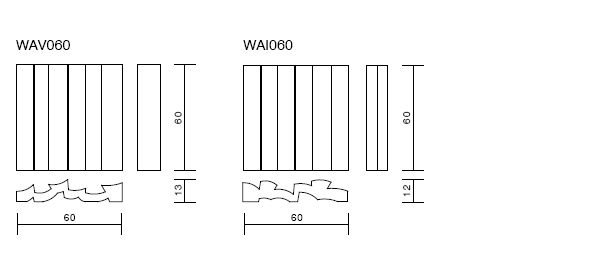

Technical drawing:


Model sizes:
    H W D Kg
  WAV060 60 cm 60 cm 13 cm 1.0
  WAI060 60 cm 60 cm 12 cm 1.1


Package Data - WAV060 - WAI060:
    H W D Kg
  4 units/box 35 cm 64 cm 64 cm 6.2
  12 units/box 104 cm 64 cm 64 cm 16.8
